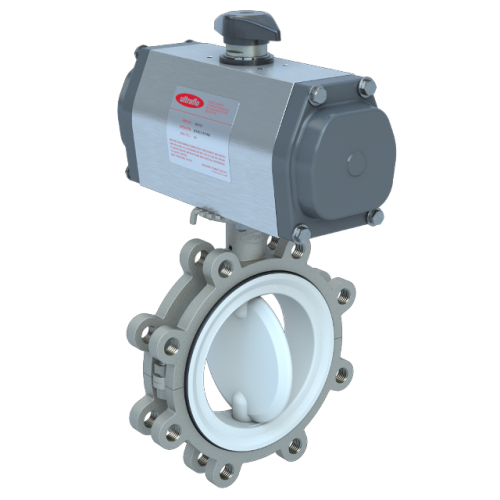

10", SS 316 Body, Lug, PTFE/EPDM Seat, PTFE/17-4PH Disc, Fail Close Pneumatic Actuator (Sized@60 psi), Butterfly Valve Series 392
$6,316.61USD In Stock
Downloads
Technical Brochure
Sizing and Selection Guide
Dimension Drawing
Selection Guide
Drawing Exploded View
Engineering Specifications
Mounting Guildlines
Specifications
| Product: | 10392734F650-FC_10392FFC36XXXXX |
|---|---|
| Product Type: | Butterfly Valves |
| Product Family: | Resilient Seated Butterfly Valves |
| Actuator Product Family: | Pneumatic Rack & Pinion Actuators |
| Actuator Action: | Spring Return Fail Close |
| Pneumatic Actuator Family: | Rack & Pinion Actuator |
| Valve Body Style: | Split Body (Sanitary, Chemical Resistant or High Cv Applications) |
| Valve Body Type: | Lug |
| Valve Size: | 10" |
| Pressure Rating psi: | 100 |
| Product Series: | 100 | 392 |
| Valve Piping Limitation: | Sch 40;Sch 80 |
| Actuator Air Supply: | 60 psi |
| Weight: | 163 |
| Actuator Part Number: | 100-214-FC |
