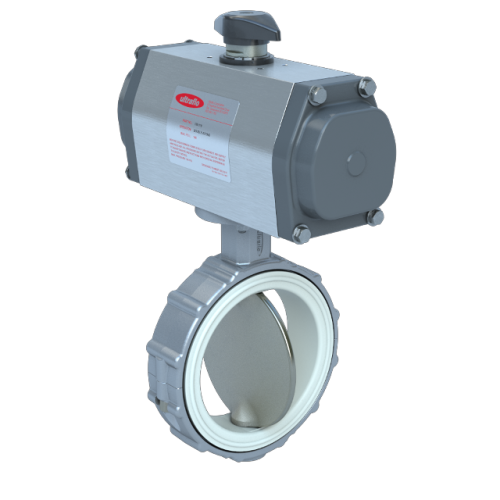

3", Aluminum Body, Wafer, White Buna Seat, One Piece Disc/Stem 316 SS Satin Finish, Fail Close Pneumatic Actuator (Sized@60 psi), Butterfly Valve Series 390
$871.18USD Consult Factory
Downloads
Technical Brochure
Sizing and Selection Guide
Dimension Drawing
Engineering Specifications
Drawing Exploded View
Selection Guide
Mounting Guildlines
Specifications
| Product: | 03390328F501-FC_03390FFC36XXXXX |
|---|---|
| Product Type: | Butterfly Valves |
| Product Family: | Resilient Seated Butterfly Valves |
| Actuator Product Family: | Pneumatic Rack & Pinion Actuators |
| Actuator Action: | Spring Return Fail Close |
| Pneumatic Actuator Family: | Rack & Pinion Actuator |
| Valve Body Style: | Split Body (Sanitary, Chemical Resistant or High Cv Applications) |
| Valve Body Type: | Wafer |
| Valve Size: | 3" |
| Pressure Rating psi: | 150 |
| Product Series: | 100 | 390 |
| Valve Piping Limitation: | Sch 40;Sch 80 |
| Actuator Air Supply: | 60 psi |
| Weight: | 26 |
| Actuator Part Number: | 100-124-FC |
