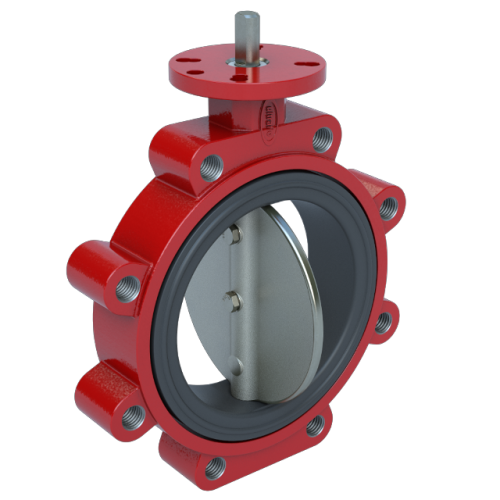

4", Nodular Iron Body,Lug, Nitrile Seat, 316 Disc, 17-4 Stem, Bare Stem, 50 psi Pressure Rating, Temp Range: -20°F to 275°F,Ultraflo Series 422
$233.89USD In Stock
Downloads
Dimension Drawing
- Ultraflo 400 5in Aluminum Dimensional Drawing
- Ultraflo 400 3in Aluminum Dimensional Drawing
- Ultraflo 422 Dimensional Drawing
- Ultraflo Flange Bolting Guide
- Ultraflo 400 Dimensional Drawing
- Ultraflo 400 Aluminum Dimensional Drawing
- Ultraflo 400 14-24in Dimensional Drawing
- Ultraflo 422 14-24in Dimensional Drawing
- Ultraflo 400 Rail Car Dimensional Drawing
Selection Guide
Engineering Specifications
Technical Brochure
IOM Manual
Sizing and Selection Guide
Drawing Exploded View
Specifications
| Product: | 04422824U500-00 |
|---|---|
| Product Type: | Butterfly Valves |
| Product Family: | Resilient Seated Butterfly Valves |
| Valve Body Style: | One Piece Body (General Industrial Applications) |
| Valve Body Type: | Lug |
| Valve Size: | 4" |
| Pressure Rating psi: | 50 |
| Product Series: | 422 |
| Valve Piping Limitation: | Sch 40 | Sch 80 |
| Weight Lbs: | 16 |
