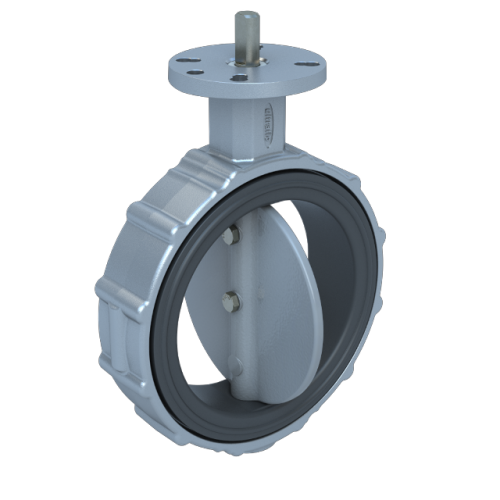

5", Aluminum Body,Wafer, Nitrile Seat, Nylon/NI Disc, 17-4 Stem, Bare Stem, 50 psi Pressure Rating, Temp Range: -20°F to 250°F,Ultraflo Series 400
$218.45USD Consult Factory
Downloads
Engineering Specifications
Dimension Drawing
- Ultraflo 400 Aluminum Dimensional Drawing
- Ultraflo 400 Rail Car Dimensional Drawing
- Ultraflo 422 14-24in Dimensional Drawing
- Ultraflo Flange Bolting Guide
- Ultraflo 400 Dimensional Drawing
- Ultraflo 400 14-24in Dimensional Drawing
- Ultraflo 400 3in Aluminum Dimensional Drawing
- Ultraflo 422 Dimensional Drawing
- Ultraflo 400 5in Aluminum Dimensional Drawing
Selection Guide
Technical Brochure
Sizing and Selection Guide
Drawing Exploded View
IOM Manual
Specifications
| Product: | 05400176U500-00 |
|---|---|
| Product Type: | Butterfly Valves |
| Product Family: | Resilient Seated Butterfly Valves |
| Valve Body Style: | One Piece Body (General Industrial Applications) |
| Valve Body Type: | Wafer |
| Valve Size: | 5" |
| Pressure Rating psi: | 50 |
| Product Series: | 400 |
| Valve Piping Limitation: | Sch 40 Only |
| Weight Lbs: | 8 |
