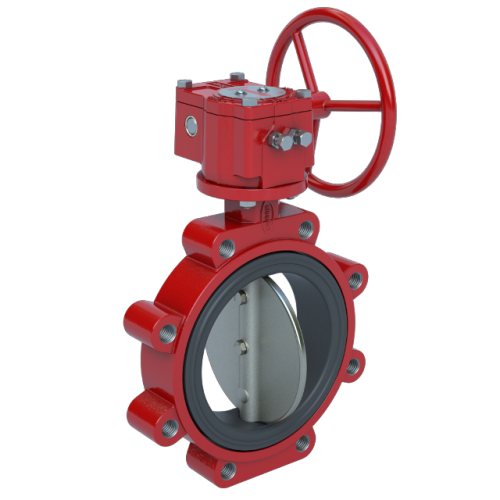

5", Ductile Iron Body, Lug, FKM Seat, 316 SS Disc, Gear Operator (For Schedule 40 Piping Only), Butterfly Valve Series 422
$650.44USD Consult Factory
Downloads
Technical Brochure
Selection Guide
Dimension Drawing
- Ultraflo 400 5in Aluminum Dimensional Drawing
- Ultraflo 400 Dimensional Drawing
- Ultraflo Flange Bolting Guide
- Ultraflo 400 Aluminum Dimensional Drawing
- Ultraflo Gear Operator Dimensional Drawing
- Ultraflo 422 14-24in Dimensional Drawing
- Ultraflo 400 14-24in Dimensional Drawing
- Ultraflo 422 Dimensional Drawing
- Ultraflo 400 Rail Car Dimensional Drawing
- Ultraflo 400 3in Aluminum Dimensional Drawing
Engineering Specifications
Drawing Exploded View
Sizing and Selection Guide
IOM Manual
Specifications
| Product: | 05422824F540-GC |
|---|---|
| Product Type: | Butterfly Valves |
| Product Family: | Resilient Seated Butterfly Valves |
| Actuator Product Family: | Gear Operators |
| Valve Body Style: | One Piece Body (General Industrial Applications) |
| Valve Body Type: | Lug |
| Valve Size: | 5" |
| Pressure Rating psi: | 150 |
| Product Series: | 422 | GO |
| Valve Piping Limitation: | Sch 40 Only |
| Weight: | 31 |
| Actuator Part Number: | 2-6-GO-CI |
